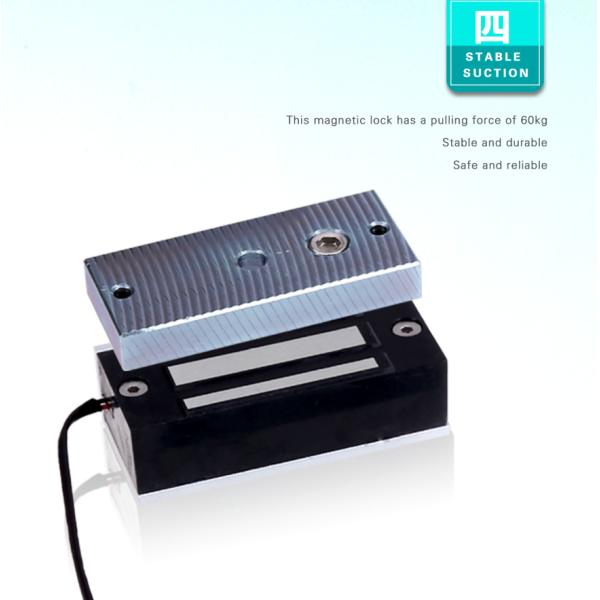

120Lbs 12v Fail Safe Mini Magnetic Lock for Cabinet Drawers
Product Overview
Magnetic locks is the same as the electromagnet. About the principle of electromagnetic, when current passes through the silicon steel sheet, magnetic locks will produce powerful suction, so helps to tightly absorb iron plate.Though current is small will produce huge magnetic, which can effectively control the door.
Specification
| Product Parameter | Parameter Description |
| Size | 80L*41W*25H(mm) |
| Armature Plate Dimension | 70L*33W*9H(mm) |
| Holding Force | 160kg(120Lbs) |
| Input Voltage | 12 or 24VDC |
| Current | 12V/300mA |
| Surface Temp | ≤+20℃ |
| Operating Temp | -10~+55℃(14-131F) |
| Humidity | 0~90%(non-condensing) |
| Signal type output | Door status +Lock status signal |
| Lock Finish | Zinc |
| Armature Plate Finish | Zinc |
| Weight | 0.5KG |
Product Details
- No mechanical damage and no residual magnetism, strong tension, less electricity and long lifespan
- MA certified products of China / CE certification of EU.
- Built-in reverse current protection device (MOV).
- Shell is made of high-strength aluminum alloy, Anodized.
- Dual Voltage 12 or 24 VDC(optional).
Feature
- With LED
- Installation type: hanging mounted/surface mounted
- Operating: fail-safe and locked when energized
- Unlocking way: unlock when power-off
- Door type: single door
- Suitable for wooden, metal, glass, stainless steel and fireproof doors
- Wiring: PC board mounted terminal block connections
- Bracket is optional, assembled on hollow door and glass doors
- Made more secure, lock body adopts two screws on each side
- Can be used with access control system, building intercom and fire
