Access control security system 280KG 600lbs electric magnetic lock with strong holding force
The design of magnetic locks(Electromagnetic lock) is the same as the electromagnet. By using the principle of electromagnetic, when current passes through the silicon steel sheet, magnetic locks will produce powerful suction, thereby help to tightly absorb iron plate. Even small current will produce huge magnetic force, which can effectively control the door.
Vians magnetic locks adopt international leading production equipment and packaging technology, which not only makes our locks' antioxidant capacity of the surface reach the international leading level, but also helps to increase the holding force (higher 20% than other manufacturers). Now our locks have been sold to more than 60 countries and regions around the world, they are widely used in the important places such as airports, subways, banks, prisons, intelligent buildings, intelligent community and so on, and become convenient, fast and intelligent tool for global users, gain good reputation from the customers.
Detail Parameters:
Advantage of the products
♦ Powerful static linear holding force.
♦ Dual Voltage 12 or 24 VDC(optional).
♦ Built-in reverse current protection device (MOV).
♦ Anti residual magnetism design, anti-wear manufacturing materials.
♦ Shell is made of high-strength aluminum alloy, Anodized.
♦ Increase the holding Force, Dual Insulative Hosing.
♦ MA certified products of China / CE certification of EU.
♦ Complete electromagnetic suction working no mechanical failure.
Related supporting bracket
1,ZL Mounting Bracket
For in-swing door, install the lock body inside and then need to install the ZK braket at the same time
2, L Mountting Bracket
When the door width is less than 42mm, the width is not enough for Armature Plate of magnetic lock
Installed,It need to add adtional L type brackets

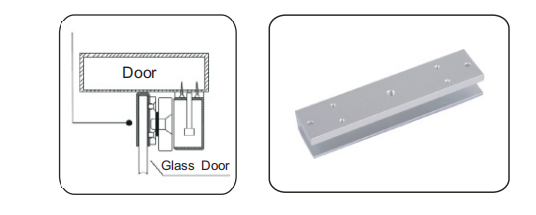

3, U Mountting Bracket
Magnetic Locks installed in glass doors require extra U bracket (for 10-15mm Glass door thick)
Related 280KG 600Lbs Series Magnetic lock:
FAQ
Q:What's warranty?
A: our Magnetic lock series we offer 5 years warranty.
Q:Can We OEM our LOGO on the locks?
A:Sure,we can help you do FREE laser LOGO on the locks. Also can do Silk printting and stampping LOGO.OEM details contact us.
Q:How do I pay for my purchase?
A: we accept the following payment methods: cridet card; moneybooker;T/T;.
Q:How much does it cost to ship to my country?
A:Please tell us your receive goods address, we will check the shipping cost for your reference
Q:Is there any tracking Number for my item?
A: Yes, we ship every order with their Tracking Number, and you can view the shipment staus on the corresponding website.
Q:Does this product come with retail package?
A: We have declared the packing detail on the description of each product, please check it, thank you!
Q:I am a reseller,I would like to buy many pieces of your item, what's the wholesale price?
A: Hi,thanks for your inquiry, if you would like to buy large quantity, please send email to us, we will give you the best price, thanks!
